KUKA iiwa 14
Sensitive collaborative robot for human-robot interaction
Contact for pricing
The KUKA iiwa 14 (intelligent industrial work assistant) is a 7-axis collaborative robot designed for sensitive assembly and handling tasks in human-robot collaboration environments. With integrated joint torque sensors in all seven axes, it enables safe direct human interaction without safety fencing. Ideal for automotive, electronics, and precision manufacturing industries requiring flexible automation with high sensitivity and precision.
Released: 2013
Overview
The KUKA iiwa 14 represents a breakthrough in collaborative robotics, combining sensitive manipulation capabilities with industrial-grade precision. As part of KUKA's intelligent industrial work assistant family, the iiwa 14 features seven axes of movement with integrated torque sensors in every joint, enabling it to detect contact forces and respond immediately to human touch or unexpected obstacles. This inherent sensitivity allows the robot to work safely alongside human operators without traditional safety barriers.
Designed for applications requiring both precision and flexibility, the iiwa 14 bridges the gap between traditional industrial robots and collaborative systems. Its 820mm reach and 14kg payload capacity make it suitable for a wide range of assembly, material handling, and inspection tasks. The robot's lightweight construction at 30kg, combined with its mounting flexibility (floor, ceiling, or wall), enables easy integration into existing production lines.
The iiwa platform is built on KUKA's decades of robotics expertise, offering industrial reliability with collaborative safety features. Its seven-axis kinematic structure provides exceptional dexterity and the ability to maneuver around obstacles or reach into confined spaces, making it particularly valuable in complex manufacturing environments where traditional six-axis robots face limitations.
Key Features
- Integrated joint torque sensors: All seven axes equipped with torque sensors for sensitive force detection and safe human-robot collaboration
- Seven-axis kinematics: Redundant axis configuration provides exceptional flexibility and ability to avoid obstacles while maintaining end-effector position
- IP54 protection rating: Dust and splash water protection enables use in demanding industrial environments
- Multiple mounting options: Can be mounted on floor, ceiling, or wall for maximum workspace flexibility
- KUKA Sunrise.OS controller: Intuitive programming with support for multiple programming languages including Java-based development
- Fast Tool Changer compatibility: Quick tool switching for flexible multi-task operations
- Collaborative operation modes: Power and Force Limiting (PFL) certified for safe human collaboration without safety fencing
Applications
The KUKA iiwa 14 excels in precision assembly operations across automotive, electronics, and medical device manufacturing sectors. Its sensitive force control makes it ideal for delicate insertion tasks, component testing, quality inspection, and finishing operations where force feedback is critical. In the automotive industry, it performs tasks such as gear assembly, dashboard installation, and precise parts handling. Electronics manufacturers utilize the iiwa 14 for PCB handling, connector insertion, and product testing where gentle handling prevents component damage.
Beyond traditional manufacturing, the iiwa 14 serves research institutions and laboratories for automation of repetitive tasks requiring human-like dexterity. Its collaborative nature makes it suitable for machine tending, packaging applications, and quality control processes where operators work directly alongside the robot. The system's sensitivity and programmability also enable applications in polishing, grinding, and surface finishing where consistent force application is essential for quality outcomes.
Technical Highlights
The defining technical achievement of the iiwa 14 is its joint torque sensing technology, with sensors integrated directly into each of the seven axes. This provides real-time force feedback with high resolution, enabling the robot to perform force-controlled assembly operations and immediately detect collisions or unexpected resistance. The redundant seventh axis delivers workspace flexibility impossible with traditional six-axis robots, allowing the robot to optimize its configuration for accessibility, singularity avoidance, and collision-free path planning.
The iiwa 14's control system runs on KUKA's Sunrise.OS, a real-time operating system designed specifically for sensitive robotics applications. This enables advanced programming capabilities including impedance control, path-accurate motions, and direct integration with vision systems and force-torque sensors. With ±0.1mm repeatability and smooth motion profiles, the robot maintains industrial-grade precision while operating safely in collaborative mode. The system's open architecture and ROS compatibility facilitate integration with third-party sensors, grippers, and software platforms, making it a versatile platform for both production and research applications.

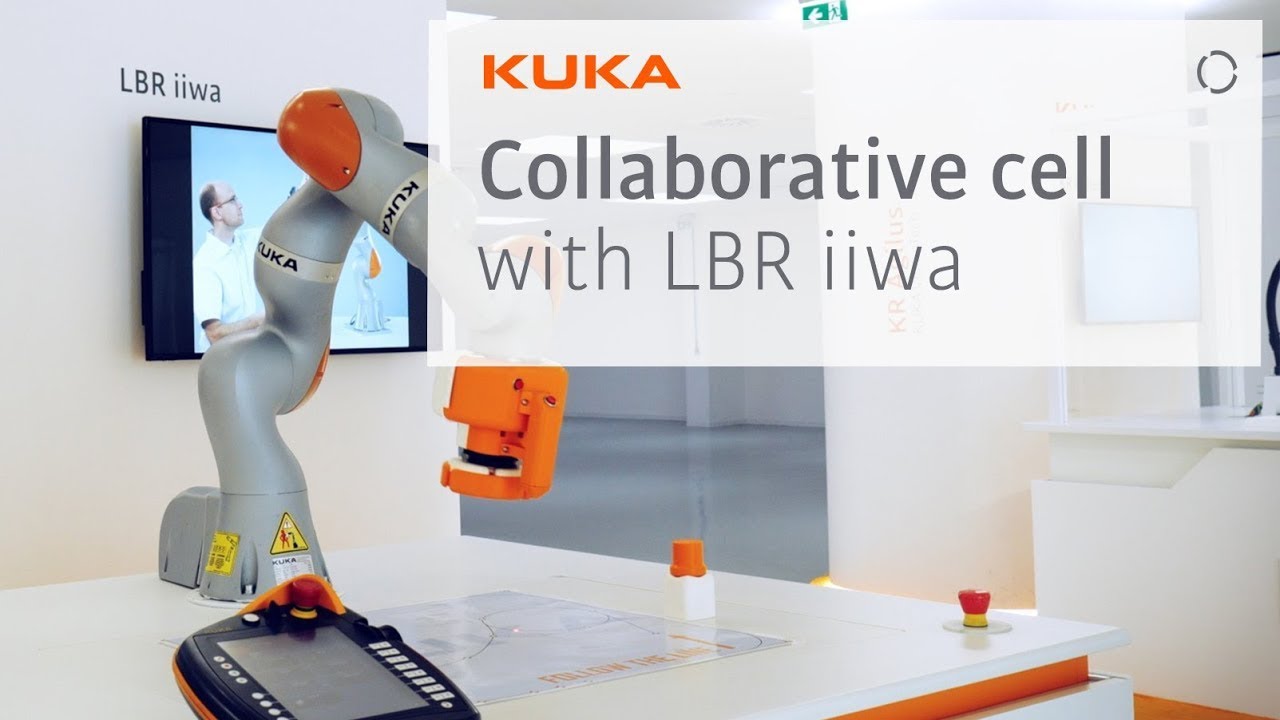

Videos
