TurtleBot 4 Lite
Low-cost ROS 2 education and research mobile robot
Price
$1,195
Record checked Jul 10, 2026
Key facts
Values reflect the public record
- Height
- 192 mmManufacturer confirmed
- Weight
- 3.3 kgManufacturer confirmed
- Payload
- 9 kgManufacturer confirmed
- Degrees of freedom
- No public data documented
- Runtime
- 2.5-4 hours (load dependent)Manufacturer confirmed
- Max speed
- 0.31 m/s (safe mode; 0.46 m/s max)Manufacturer confirmed
Canonical robot record
Overview

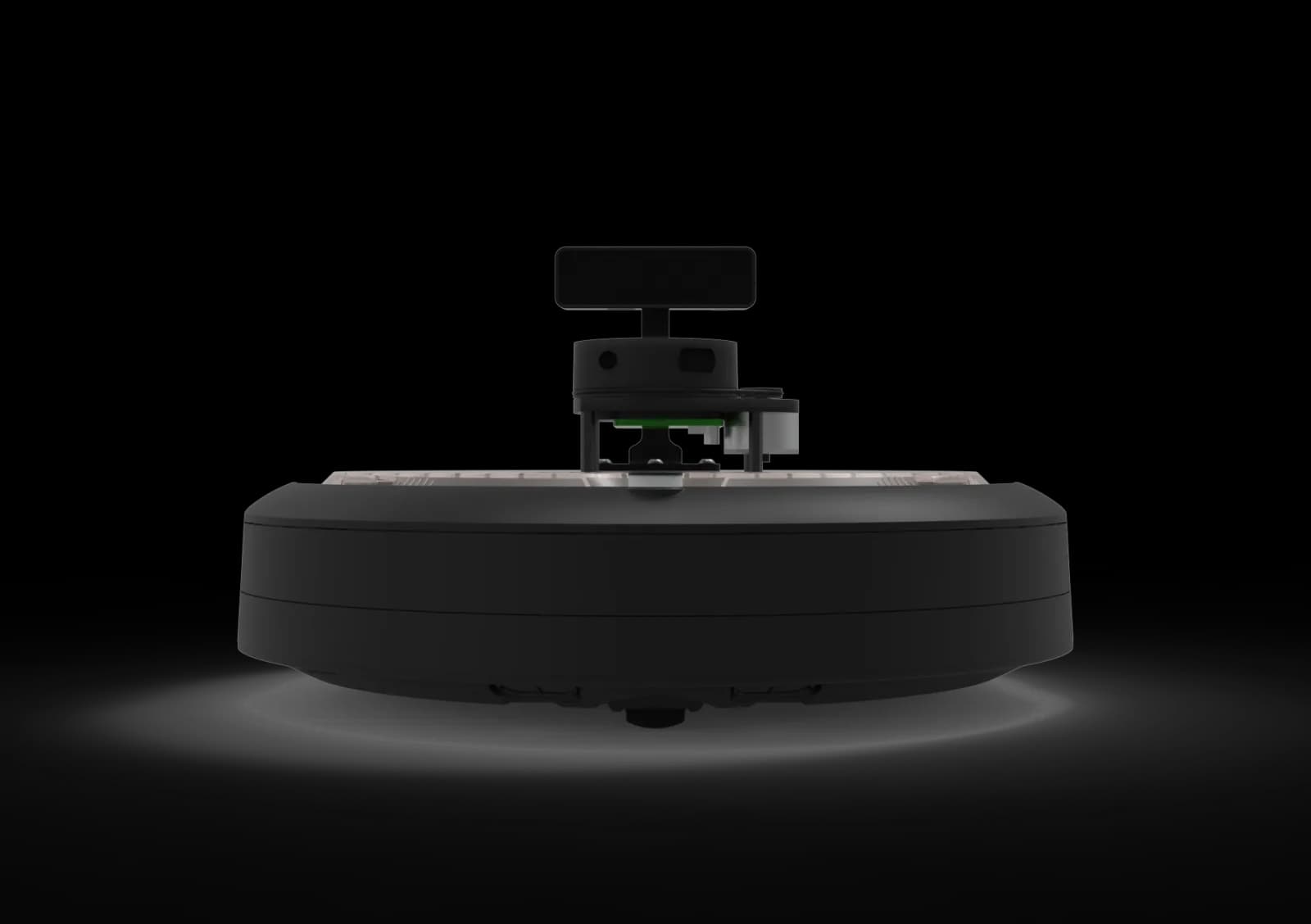

TurtleBot 4 Lite is the lower-cost configuration of the TurtleBot 4 open-source ROS 2 education and research platform, built by Clearpath Robotics with Open Robotics on the iRobot Create 3 mobile base. It omits the Standard model's sensor tower, OLED display and mounting plate, and uses an OAK-D-Lite camera in place of the OAK-D-Pro, reducing height to 192 mm and weight to about 3.3 kg. Core autonomy hardware is unchanged from the Standard: RPLIDAR A1M8 2D LiDAR, Raspberry Pi 4B (4 GB) and ROS 2.
RoboZaps maintains this record as part of its canonical robotics database. Specs are source-verified where linked; the record compares public facts across manufacturers rather than representing a single robot maker.
- Spec sources
- 2 linked
- Verification
- Verified · 11/11 specs source-verified
- Deployment
- Paid Deployment
- Last verified
- Jul 10, 2026
Specifications
Grouped technical data with source detail available on demand.
11 documented values
Compute
| Compute | Raspberry Pi 4B (4 GB)Manufacturer confirmedVerified Jul 10, 2026 TurtleBot 4 Documentation (Clearpath Robotics) (opens in a new tab) |
|---|
Connectivity
| Communication | WiFiManufacturer confirmedVerified Jul 10, 2026 TurtleBot 4 Documentation (Clearpath Robotics) (opens in a new tab) |
|---|
Mechanics
| Locomotion | WheeledManufacturer confirmedVerified Jul 10, 2026 Clearpath Robotics (opens in a new tab) |
|---|
Performance
| Max Speed | 0.31 m/s (safe mode; 0.46 m/s max)Manufacturer confirmedVerified Jul 10, 2026 TurtleBot 4 Documentation (Clearpath Robotics) (opens in a new tab) |
|---|---|
| Payload Capacity | 9 kgManufacturer confirmedVerified Jul 10, 2026 Clearpath Robotics (opens in a new tab) |
Physical
| Height | 192 mmManufacturer confirmedVerified Jul 10, 2026 TurtleBot 4 Documentation (Clearpath Robotics) (opens in a new tab) |
|---|---|
| Weight | 3.3 kgManufacturer confirmedVerified Jul 10, 2026 TurtleBot 4 Documentation (Clearpath Robotics) (opens in a new tab) |
Power
| Runtime | 2.5-4 hours (load dependent)Manufacturer confirmedVerified Jul 10, 2026 TurtleBot 4 Documentation (Clearpath Robotics) (opens in a new tab) |
|---|
Sensing
| Sensors | RPLIDAR A1M8 2D LiDAR, OAK-D-Lite camera, IMU, bumper, cliff/IR sensorsManufacturer confirmedVerified Jul 10, 2026 TurtleBot 4 Documentation (Clearpath Robotics) (opens in a new tab) |
|---|
Software
| ROS Compatible | YesManufacturer confirmedVerified Jul 10, 2026 TurtleBot 4 Documentation (Clearpath Robotics) (opens in a new tab) |
|---|---|
| SDK Support | YesManufacturer confirmedVerified Jul 10, 2026 TurtleBot 4 Documentation (Clearpath Robotics) (opens in a new tab) |
Evidence & changelog
Sources behind this record and material corrections made over time.
Sources
- TurtleBot 4 Documentation (Clearpath Robotics) - record-surgery-4 verification (opens in a new tab) · TurtleBot 4 Documentation (Clearpath Robotics) — cites Height, Weight, SDK Support, ROS Compatible, Max Speed, Battery Life, Sensors, Communication, Compute
- Clearpath Robotics - record-surgery-4 verification (opens in a new tab) · Clearpath Robotics — cites Payload Capacity, Locomotion
Manufacturer
Developer of autonomous vehicles and unmanned ground vehicle platforms for research and industrial applications.
- Headquarters
- Kitchener, Canada
- Founded
- 2009
