ultraArm P340
Multifunctional desktop stepper robot arm
Price
$999
Record checked Jul 10, 2026
Key facts
Values reflect the public record
- Height
- No public data documented
- Weight
- 2.9 kgManufacturer confirmed
- Payload
- 650 g (0.65 kg)Manufacturer confirmed
- Degrees of freedom
- 4 (3+1 axes)Manufacturer confirmed
- Runtime
- No public data documented
- Max speed
- 100 mm/s (0.1 m/s) maximum terminal velocityManufacturer confirmed
Canonical robot record
Overview

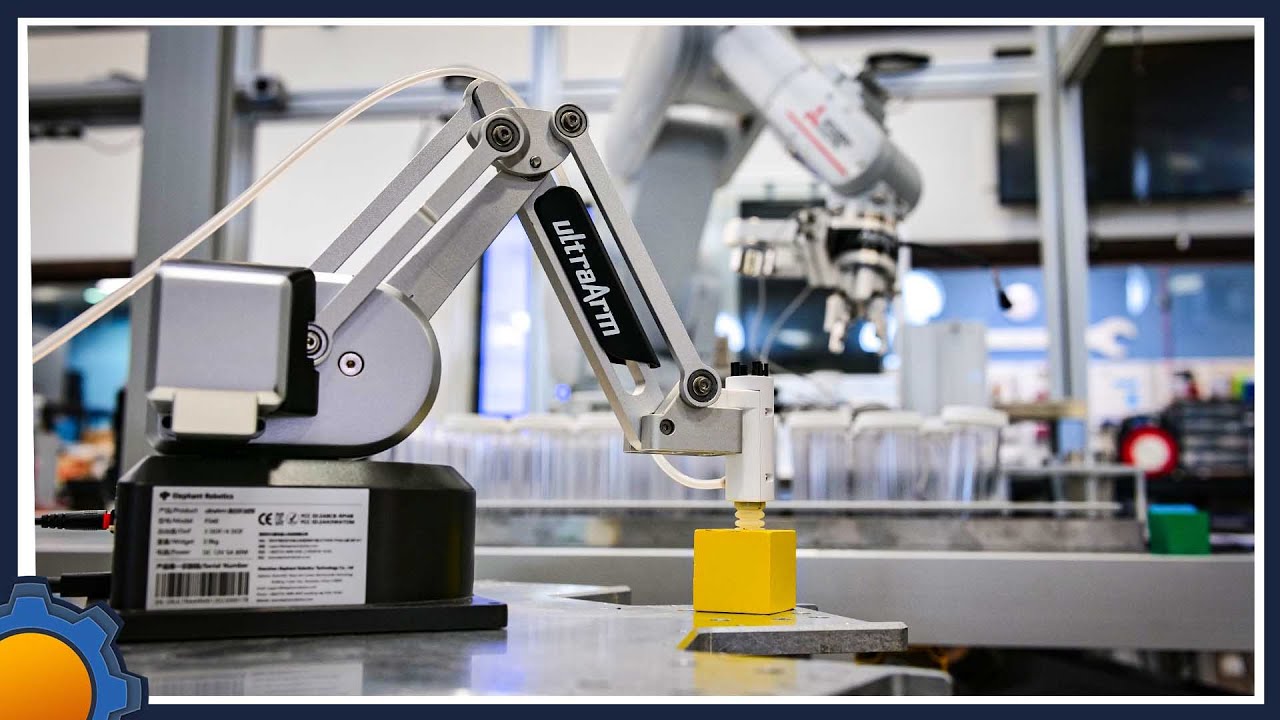

The ultraArm is a line of compact desktop robotic arms from Elephant Robotics, aimed at education, research, and prototyping. The flagship P340 model uses a metal structure and high-performance stepper motors to deliver stable, precise motion in a footprint roughly the size of a sheet of A5 paper, making it suitable for classroom desks and small workbenches.
The arm is designed as a multifunctional platform. Out of the box it supports writing and drawing, and with add-on kits it can perform laser engraving and vision-based pick-and-place tasks. It integrates with accessories such as slide rails, conveyor belts, and the myAGV mobile platform, allowing it to be used in more complex automation and training scenarios.
Elephant Robotics positions the ultraArm as an affordable entry point into collaborative robotics, pairing accessible hardware with practical training projects for both educational and research users.
RoboZaps maintains this record as part of its canonical robotics database. Specs are source-verified where linked; the record compares public facts across manufacturers rather than representing a single robot maker.
- Spec sources
- 2 linked
- Verification
- Verified · 10/10 specs source-verified
- Deployment
- Paid Deployment
- Last verified
- Jul 10, 2026
Key Features
- Compact metal desktop arm with a small, classroom-friendly footprint
- High-performance stepper motors providing stable, precise positioning
- Multifunctional use: writing, drawing, laser engraving, and vision-based pick-and-place
- Expandable with accessories including slide rails, conveyor belts, and the myAGV platform
- Targeted at education, research, and prototyping users
Specifications
Grouped technical data with source detail available on demand.
10 documented values
Connectivity
| Communication | USB serial (Type-C) and RS485; no Ethernet or WiFiThird-party sourceVerified Jul 9, 2026 CNX Software / Elephant Robotics 2023-lineup blog (opens in a new tab) |
|---|
Mechanics
| Degrees of Freedom | 4 (3+1 axes)Manufacturer confirmedVerified Jul 9, 2026 Elephant Robotics (shop) (opens in a new tab) |
|---|---|
| Locomotion | StationaryManufacturer confirmedVerified Jul 9, 2026 Elephant Robotics (shop) (opens in a new tab) |
Performance
| Max Speed | 100 mm/s (0.1 m/s) maximum terminal velocityManufacturer confirmedVerified Jul 9, 2026 Elephant Robotics (shop) (opens in a new tab) |
|---|---|
| Payload Capacity | 650 g (0.65 kg)Manufacturer confirmedVerified Jul 9, 2026 Elephant Robotics (shop) (opens in a new tab) |
| Reach | 340 mm working radiusManufacturer confirmedVerified Jul 9, 2026 Elephant Robotics (shop) (opens in a new tab) |
| Repeatability | ±0.1 mmManufacturer confirmedVerified Jul 9, 2026 Elephant Robotics (shop) (opens in a new tab) |
Physical
| Weight | 2.9 kgManufacturer confirmedVerified Jul 9, 2026 Elephant Robotics (shop) (opens in a new tab) |
|---|
Software
| ROS Compatible | YesManufacturer confirmedVerified Jul 9, 2026 Elephant Robotics (shop) (opens in a new tab) |
|---|---|
| SDK Support | YesManufacturer confirmedVerified Jul 9, 2026 Elephant Robotics (shop) (opens in a new tab) |
Evidence & changelog
Sources behind this record and material corrections made over time.
Sources
- Elephant Robotics (shop) - tranche-7 verification (opens in a new tab) · Elephant Robotics (shop) — cites Max Speed, SDK Support, Locomotion, ROS Compatible, Repeatability, Reach, Payload Capacity, Degrees of Freedom, Weight
- CNX Software / Elephant Robotics 2023-lineup blog - tranche-7 verification (opens in a new tab) · CNX Software / Elephant Robotics 2023-lineup blog — cites Communication
Record changelog
- Weight: 12 kg changed to 2.9 kg · Jul 9, 2026
tranche-7 verification (corrected): Maker spec: 2.9 kg, agreeing with the core weight_kg column. 12 kg (~4x) matches no ultraArm product.
- Degrees of Freedom: 6 changed to 4 (3+1 axes) · Jul 9, 2026
tranche-7 verification (corrected): Maker spec table says DOF '3+1'; marketed as a 4-axis palletizing-kinematics stepper arm. 6 DOF is wrong (myCobot-class bleed).
- Payload Capacity: 5 kg changed to 650 g (0.65 kg) · Jul 9, 2026
tranche-7 verification (corrected): Maker spec: payload 650 g. Stored 5 kg is a ~7.7x inflation — classic aggregator/wrong-product figure on a sub-kg desktop arm.
- Reach: 700 mm changed to 340 mm working radius · Jul 9, 2026
tranche-7 verification (corrected): Maker spec: working radius 340 mm (the '340' in P340). Stored 700 mm is roughly double and matches no ultraArm variant.
- Repeatability: ±0.03 mm changed to ±0.1 mm · Jul 9, 2026
tranche-7 verification (corrected): Maker spec and launch coverage both say ±0.1 mm. ±0.03 mm is a higher-end cobot figure (Mercury-class bleed, over-states precision 3x).
- Communication: Ethernet, WiFi changed to USB serial (Type-C) and RS485; no Ethernet or WiFi · Jul 9, 2026
tranche-7 verification (corrected): P340 is an ATMega2560 Arduino-class board controlled from an external host over USB serial; CNX spec list gives 'RS485 and USB serial'. Ethernet/WiFi belong to netw
- Max Speed: 100 mm/s changed to 100 mm/s (0.1 m/s) maximum terminal velocity · Jul 9, 2026
tranche-7 verification (corrected): Value string matches maker ('100mm/s' terminal velocity; joints 100°/s), but numeric_value 100 in the m/s canonical unit is a 1000x unit error — must be 0.1.
Media
Manufacturer
Developer of collaborative robots and educational robotics solutions including the myCobot series of compact robotic arms.
- Headquarters
- Shenzhen, China
- Founded
- 2016
