Unitree Z1

Name: Unitree Z1
Brand: Unitree Robotics

High-Performance 6-DOF Robotic Arm for Research

Contact for pricing

The Unitree Z1 is a lightweight, high-precision 6-DOF robotic manipulator designed for research, education, and industrial applications. Featuring a 500mm reach, 3kg payload capacity, and 0.05mm repeatability, it offers exceptional performance in a compact form factor. The arm integrates seamlessly with Unitree's quadruped robots and supports ROS, making it ideal for mobile manipulation research and automation tasks.

Released: 2023

Overview

The Unitree Z1 represents a significant advancement in affordable, high-performance robotic manipulators. Designed by Unitree Robotics, a company renowned for its quadruped robots, the Z1 is engineered to complement mobile robotics platforms while standing strong as a standalone research tool. With its 6 degrees of freedom, the arm provides exceptional dexterity and workspace coverage, making it suitable for complex manipulation tasks.

Weighing only 4.2 kilograms, the Z1 achieves an impressive strength-to-weight ratio, capable of handling payloads up to 3kg at full extension. The arm's compact and lightweight design makes it particularly well-suited for mounting on mobile platforms, including Unitree's Go1 and B1 quadruped robots, enabling advanced mobile manipulation research.

Built with precision engineering, the Z1 features high-quality joint actuators and a robust mechanical structure that ensures reliable performance across research, educational, and light industrial applications. Its open architecture and comprehensive software support make it accessible to researchers and developers seeking to push the boundaries of robotic manipulation.

Key Features

6-DOF Configuration: Six degrees of freedom providing comprehensive workspace coverage and manipulation flexibility
High Precision: 0.05mm repeatability enabling accurate and consistent positioning for research applications
Lightweight Design: 4.2kg total weight optimized for mobile platform integration and ease of deployment
Strong Payload Capacity: 3kg payload capacity at full 500mm reach for handling diverse objects
ROS Integration: Native ROS support with comprehensive software libraries for rapid development
Open SDK: Complete software development kit enabling custom control algorithms and applications
Multiple Communication Protocols: Ethernet and CAN bus connectivity for flexible system integration
Modular Mounting: Universal mounting interface compatible with Unitree quadruped robots and custom platforms

Applications

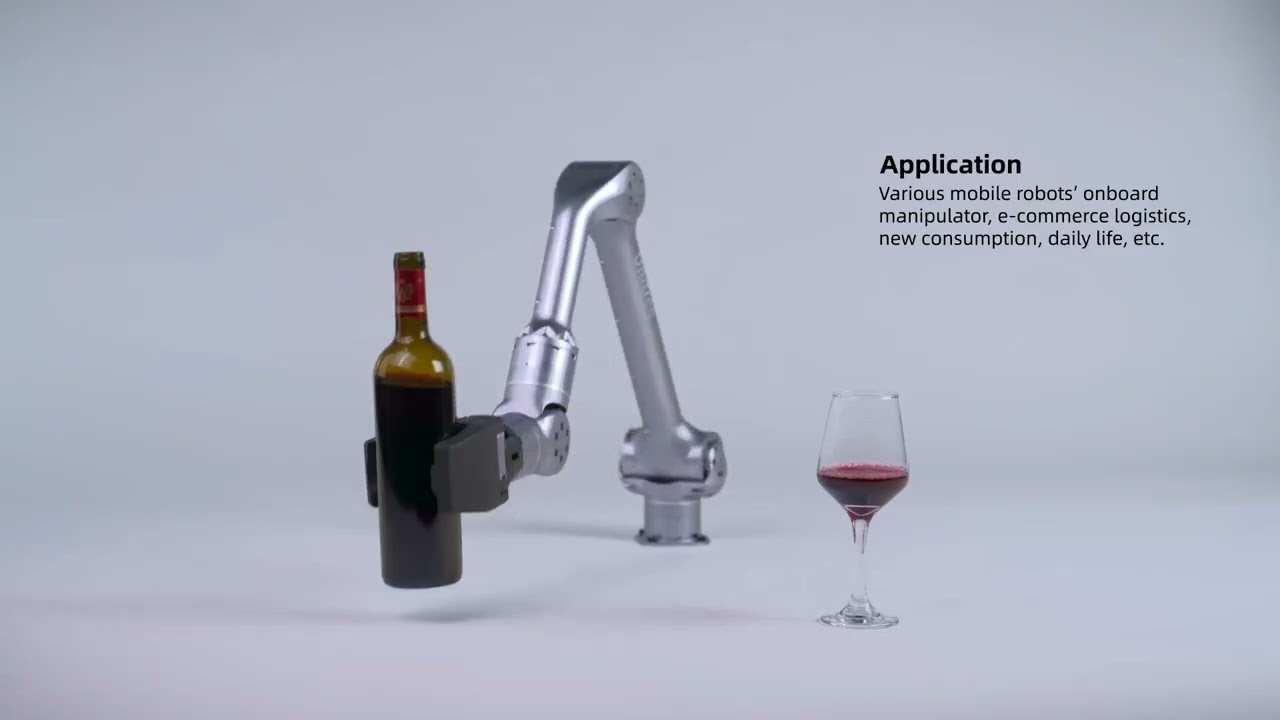

The Unitree Z1 excels in research environments where mobile manipulation is critical. Universities and research institutions utilize the Z1 for developing and testing advanced algorithms in areas such as autonomous grasping, object manipulation, human-robot interaction, and mobile manipulation when paired with quadruped platforms. The arm's precision and reliability make it ideal for experiments requiring repeatable results and fine motor control.

Beyond academia, the Z1 finds applications in light industrial automation, quality inspection, and educational settings. Its affordable price point and comprehensive software support make it accessible for robotics education programs, allowing students to gain hands-on experience with professional-grade hardware. Industrial researchers also employ the Z1 for prototyping automation solutions and testing manipulation strategies before scaling to production environments.

Technical Highlights

The Z1's engineering showcases Unitree's expertise in creating high-performance actuators and control systems. Each joint features custom-designed motors with integrated position and torque sensing, enabling advanced control modes including impedance control and force feedback. The arm's kinematics are optimized for maximum workspace utilization while maintaining structural rigidity, achieved through careful selection of materials and mechanical design.

The control architecture supports real-time operation with low-latency communication protocols, essential for dynamic manipulation tasks and reactive behaviors. The comprehensive SDK provides access to low-level control interfaces, allowing researchers to implement custom control strategies while also offering high-level APIs for rapid application development. This combination of hardware precision and software flexibility positions the Z1 as a versatile platform for advancing the state of robotic manipulation research.
